175 - Swivel Elbow

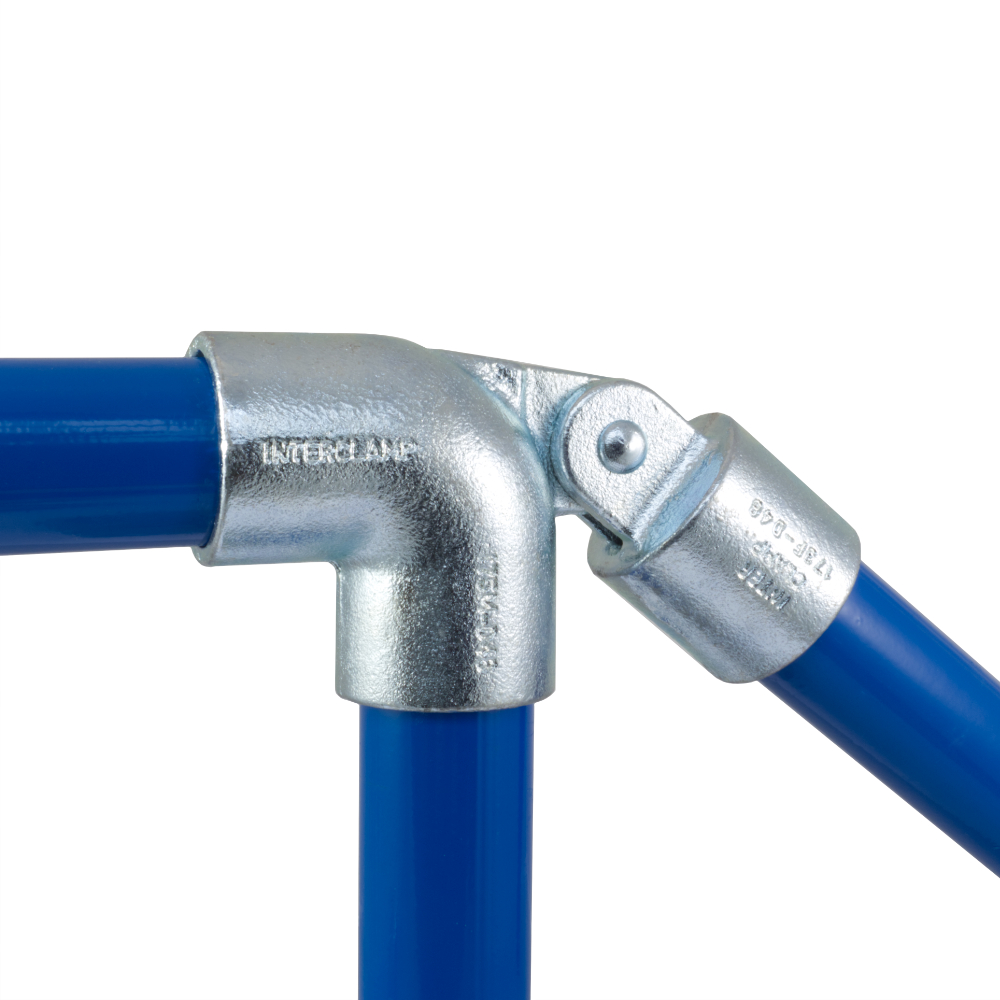

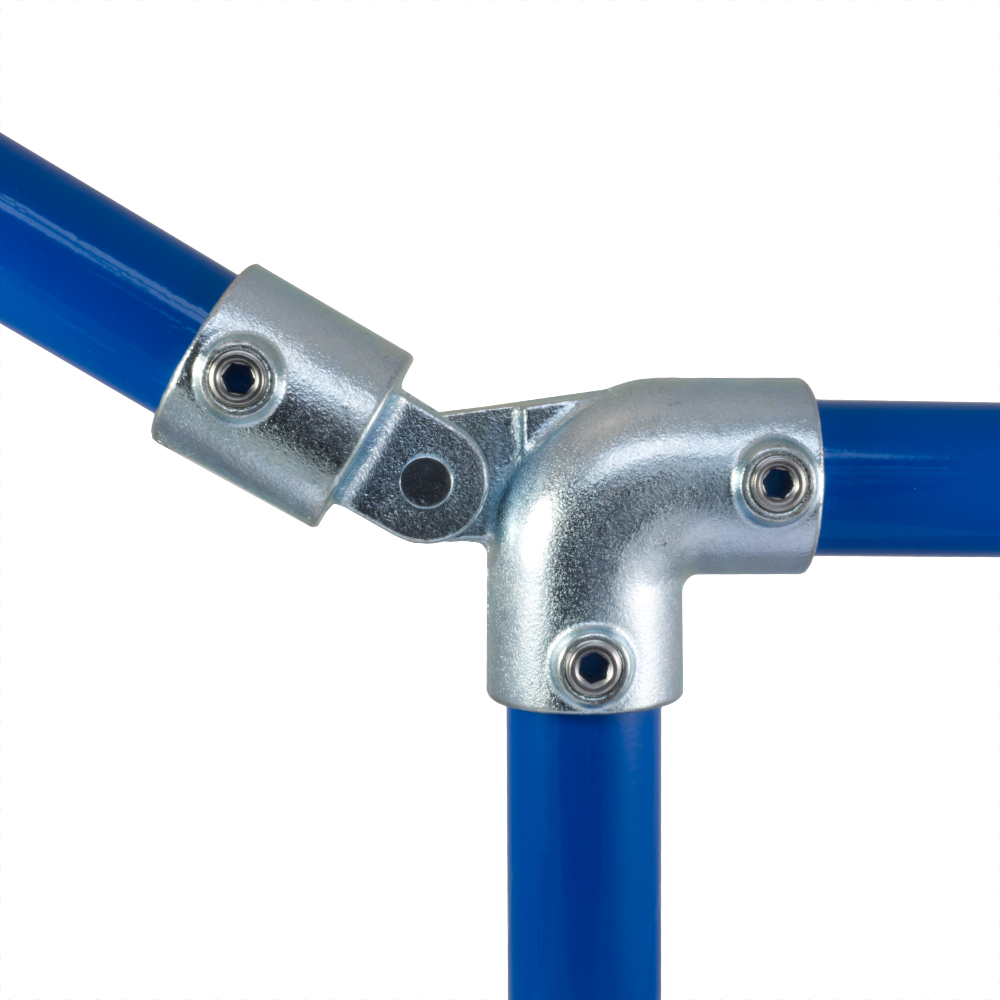

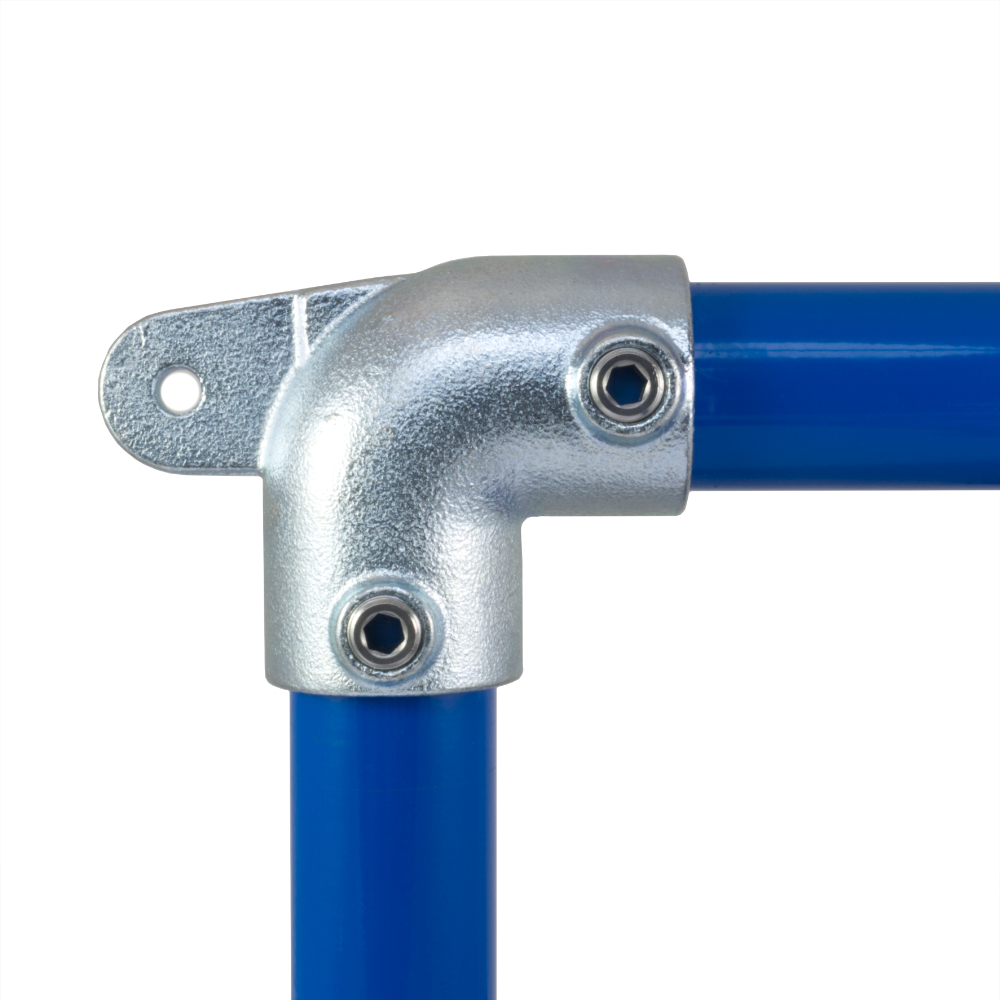

A versatile swivel fitting, often used for braces and where staircase top rails join level sections. The assembly is riveted together, although items can be supplied separately as 175M and 173F.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

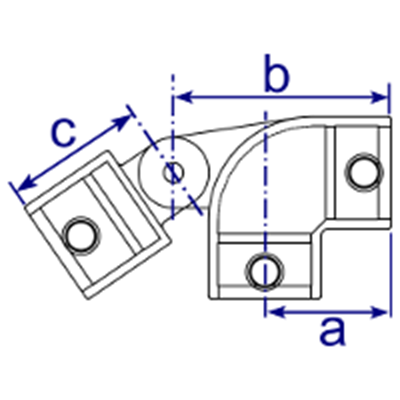

Size a (mm) b (mm) c (mm) Weight (kg) Box Qty* Part No
  D48   68   117   77   1.49   16   175-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
