746 - DDA Assist Saddle Wall Bracket
To attach the handrail to a wall at any angle. Rivets or self-drilling screws can be supplied separately at extra cost.
Although the saddles type Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted. Please note, however, that for relevant UK applications, D48 size handrails do not meet the dimensional requirements of the Disability Discrimination Act (DDA) regulations and Building Regulations Part M:2004.

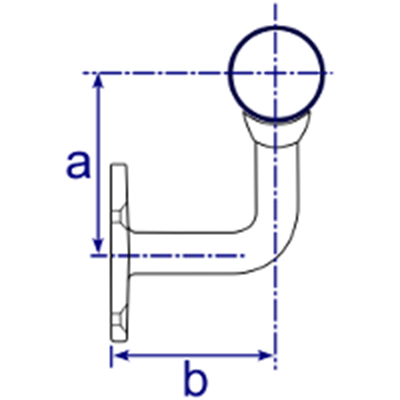

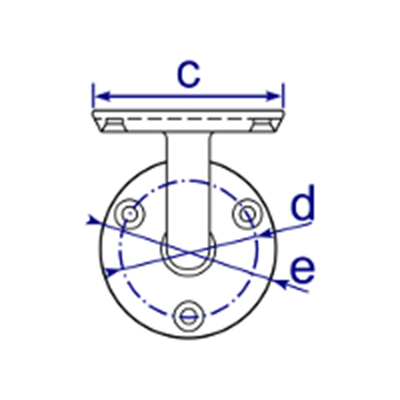

Product Data & Dimensions
| Size | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Weight (kg) | Box Qty* |
| C42 | 80 | 76.5 | 90 | 63 | 81.5 | 0.58 | 50 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
